Functions：
1.Off-line maximum 150,000 nodes supported；
2.Automatic, time setting, holidays default effects play supported by system；
3.Trichromatic individual brightness control, makes the precise white balance control easier and more effective；
4.Maximum transmission distance 100 meters by stable transmission of Ethernet port and UDP newwork protocol；

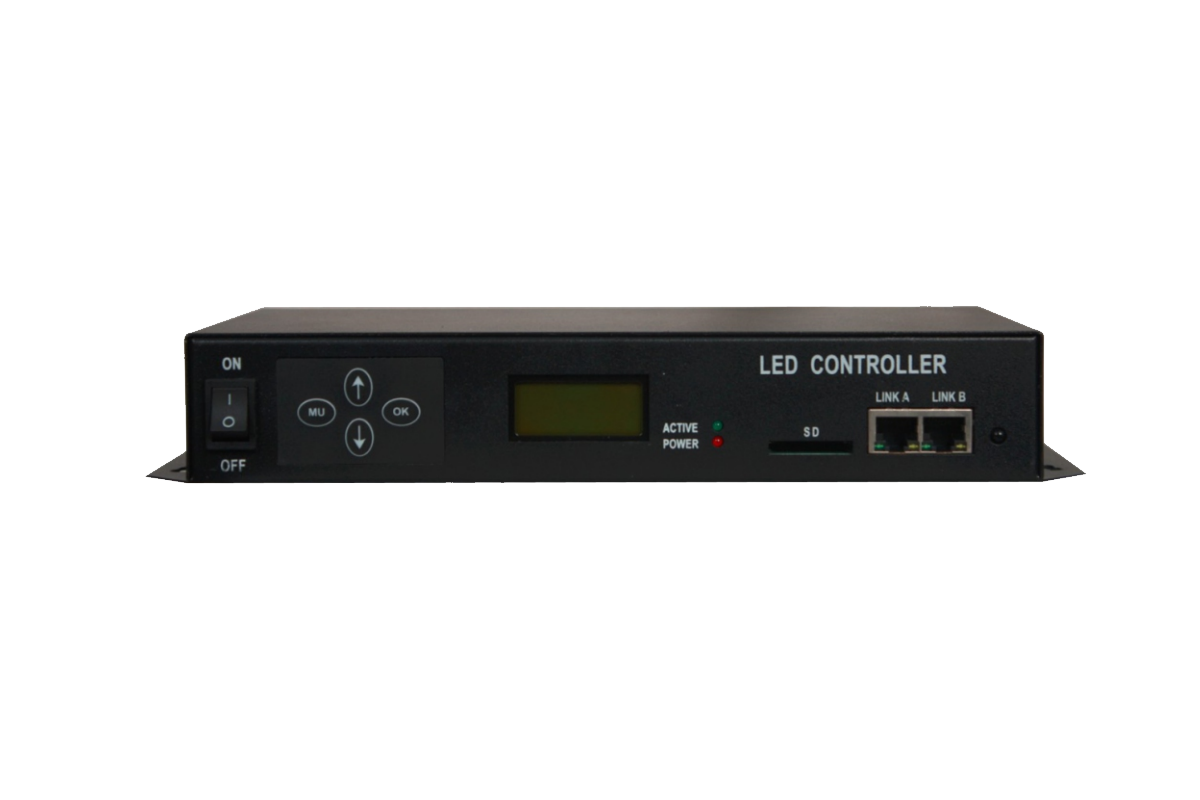

5. LCD display module displays the specifications and situations of controller in time；
6. SD memory card, maximun 32G supported by controller, maximum 99 default channel files；
7.Internal animation test procedure for Debugging and Application in the project；
8.Support differents lights or protocol mixed use, strong compatibility.
9.4 colors Design: energy conservation and environmental protection, pure color；
10. Synchronous and asynchronous integrated contro:Online first, no online offline signal automatic switching oof-line effect, realize the
























video source backup；
11. Large independent development design video editing, playback and wiring design software: more adaptable, more language support, highly open, use in the domestic and foreign various special-shaped screen, multi screen, screen pixel lights, building screen and other complex applications；
12. Main stream 32 bit, 64 bit operating system: Windows 2000, windows XP, Windows 7, windows 8 supported.
Control Signal：TCP/IP (network signal).
Control Mode：Off-line individually.
Installation Environment： Indoor/Outdoor (inside waterproof box).

Application Places：
Outdoor architectures outline, amusement parks, Hotels, Malls, Square Streets, Bridges and City lighting places.etc.
