Functions：
1. 32-65536 level gray control, precise Gamma correction, more suitable for human visual characteristic, more full and rich color, a perfect embodiment of the animationor video effects；
2.Trichromatic individual brightness control, makes the precise white balance control easier and more effective；
3. LCD display module displays the specifications and situations of controller；
4.Output of the controller is compatible with both the TTL level signal and differential signal modes；
5. A variety of chip control set in one, set up by the software control chip, the clock frequency, duty cycle and other parameters, the gray level change；
6.Double network interface, realizes the cascade between controllers; automatic detection of controllers, software displays the connection status directly；
7.8 port output each port standard 512 channels output, extended protocol with load points tested by the customers themselves according to the characteristics of the chip；
8.Adaptive or forced hundred milion/thousands million can be set to ensure large nobes projects more stable；
9.4 colors Design: energy conservation and environmental protection, pure color；
10. Large independent development design video editing, playback and wiring design software: more adaptable, more language support, highly open, use in the domestic and foreign various special-shaped screen, multi screen, screen pixel lights, building screen and other complex applications；
11.Optical fiber transmission supports fiber module after the conversion; support the transmission of the wireless network and wireless network connection and the Internet remote control；
12.Support all major driving chip serial data interface LED on the market, such as MBI6020, MBI6021, MBI6024, MBI6030, LPD6803, LPD8806, LPD1886, TM1803, TM1804, TM1829, TM1812, TLS3001, TLS3008, MY9221, MY9231, WS2801, WS2811, SM16716, BS0815, BS0901, BS0902, UCS8903, UCS3903, TI5971, GW6201, GW6202, GW6205, DMX512, DMX512-AP, UCS512 etc.；
Control Signal：TCP/IP*2+TTL/RS485*8.
Control Mode：Online/offline.
Installation Environmen：Indoor/Outdoor (inside waterproof box).

Application Places
Outdoor architectures outline, amusement parks, Hotels, Malls, Square Streets, Bridges and City lighting places.etc.

Features

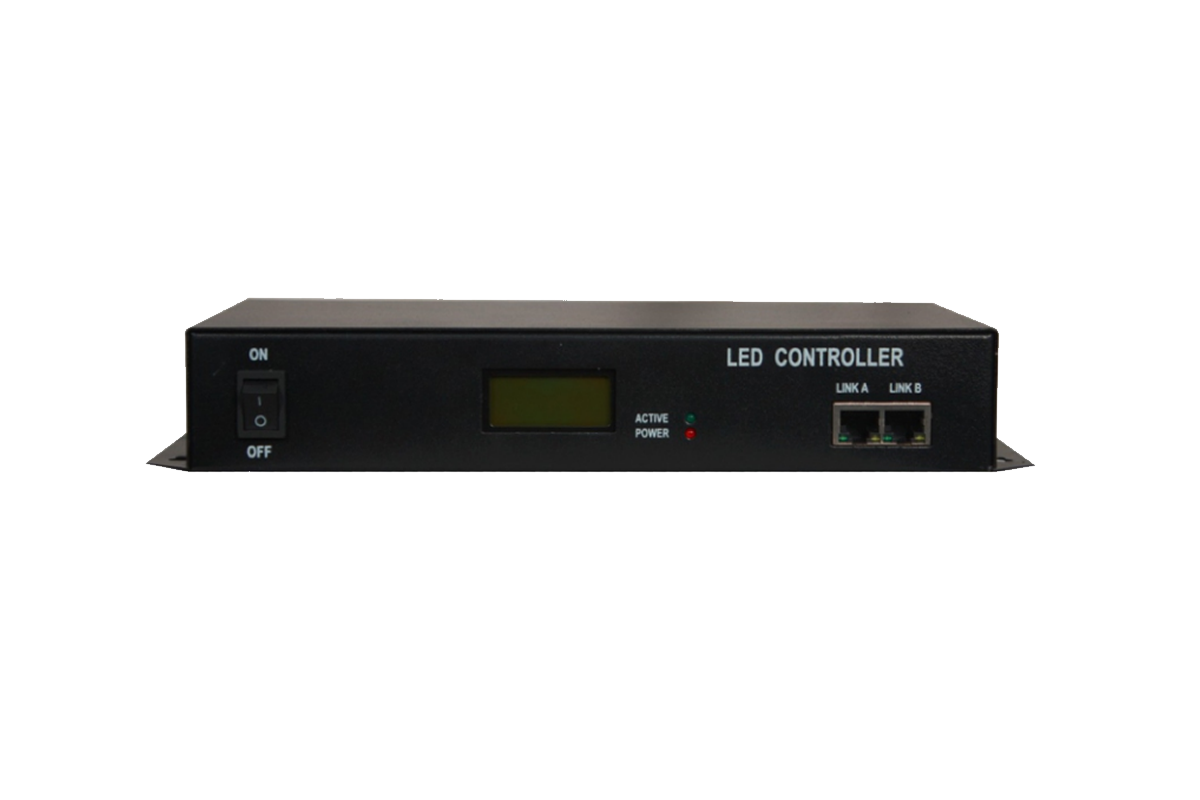

Product size
