The lamp body is waterproof by glue filling；
Special structure is adopted to optimize the installation of large size light guide plate for easy installation；
6063 Aluminium Extrusion lamp body, surface anodic oxidation treatment or according to environmental color spray treatment；
Waterproof grade IP65；
It can be used in outline of outdoor buildings, amusement parks, hotels, commercial buildings, square streets, outdoor entertainment places, special places for bridges and urban lighting places.

Product size

Product parameters

The lamp body	Precision aluminum
Luminous surface	6-8mm PMMA
Install	Fixed bracket
Appearance color	Anodic oxidation/surface spray
Input voltage	DC24V
Maximum power	24W
Safety grade	III Class
Light type	3535/5050
Light life	>30000 H
Entry cable	Outlet at both ends
Ambient tmperature	-20℃ - 55℃
Ambient humidity	0-90%
IP Rate	Ip65
Weight	1-5kg/M

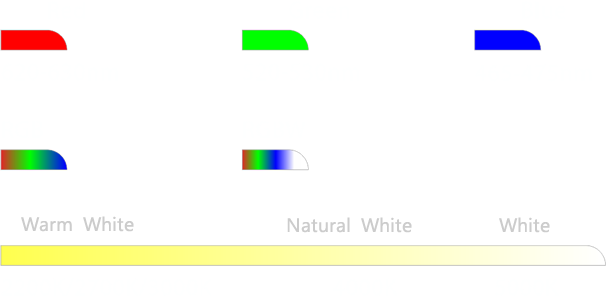

Light color

Beam angle

Features


Optional product specification

Shape Making

Matching wire
